- Code:
GP350BA
Mitre Saw Pegic GP350 with supports, base, dust collector (3 pieces)
- Net weight: kg 136 - Gross weight: kg 143
-
Click on the link to open the video

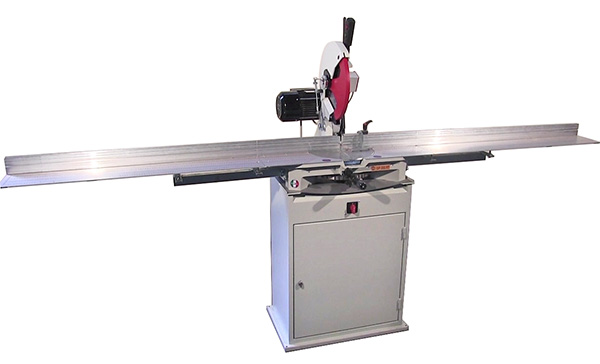

Mitre Saw Pegic GP350 with supports, base, dust collector (3 pieces)
The Pegic GP350 Mitre Saw is suitable for Saw Pegic GP350 for cutting 45°, 90° and other intermediate angles.
The rotating table is automatically locked on the following fixed positions: 0°, 10°, 15°, 22,30° (for octagons), 30° (for hexagons) and 45°. For intermediate positions the lock is manual.
Features of the Pegic GP350:
• Single phase motor 230 Volt • Motor power Kw 2,20
• Blade diameter 350 mm (hole 30 mm) • 2800 rpm sawblade speed
• Metal guard of the blade
• Maximum cutting width at 45° 110 mm
• Maximum cutting width at 90° 160 mm
• Maximum cutting height: 115 mm
• Double shock absorber of lowering the cutting block
• Dust collector tube mouth Ø 80 mm
• Weight: 52 kg
Some special features are:
• Two black pistons that are used to balance the weight so as to lighten the movements of the machine. The piston springs are hardened so as to avoid wear.
• The rotating table works on special bearings that greatly facilitate sliding and precision.
• The motor block that has the task of stopping the blade in less than 5 seconds.
• Metal guard of the blade that guarantees more safety than the plastic guard used by other saws.
The price does not include the blade. If you order the blade together with the saw, you will receive the saw with the blade already installed and ready for use.
The saw is independent of the base and can positioned on any work bench.
The saw is very robust, solid and has innovative technical solutions.
The saw GP350 can be positioned both on its stand and on a work bench as the moulding support tables are secured to the saw body (and not to the base as with the 1P300 saw).
All movements are equipped with bearings that give smoothness, rigidity and precision.
A complete instruction manual is provided with the machine.
The saw can be supplied in 3 versions:
• Code GP350 = Without the moulding supports
• Code GP350PD = With the two moulding supports
• Code GP350BA = With the two moulding supports, base with dust collector and connecting tube
The following accessories can be ordered separately:
• Circular blade 35 cm diameter suitable for cutting mouldings (code 36235)
• Reversible measuring stop for 45° cutting (code GP350F)
• Reversible measuring stop for 90° cutting (code GP350N)
• Moulding supports in extruded aluminum profile complete with measuring scale (cm 150) (GP350D Code)
• Base with dust collector and connecting tube (code GP350B)
• Horizontal clamp for blocking the moulding (code GP350M)
• Pair of pneumatic horizontal clamps (GP350P code)
